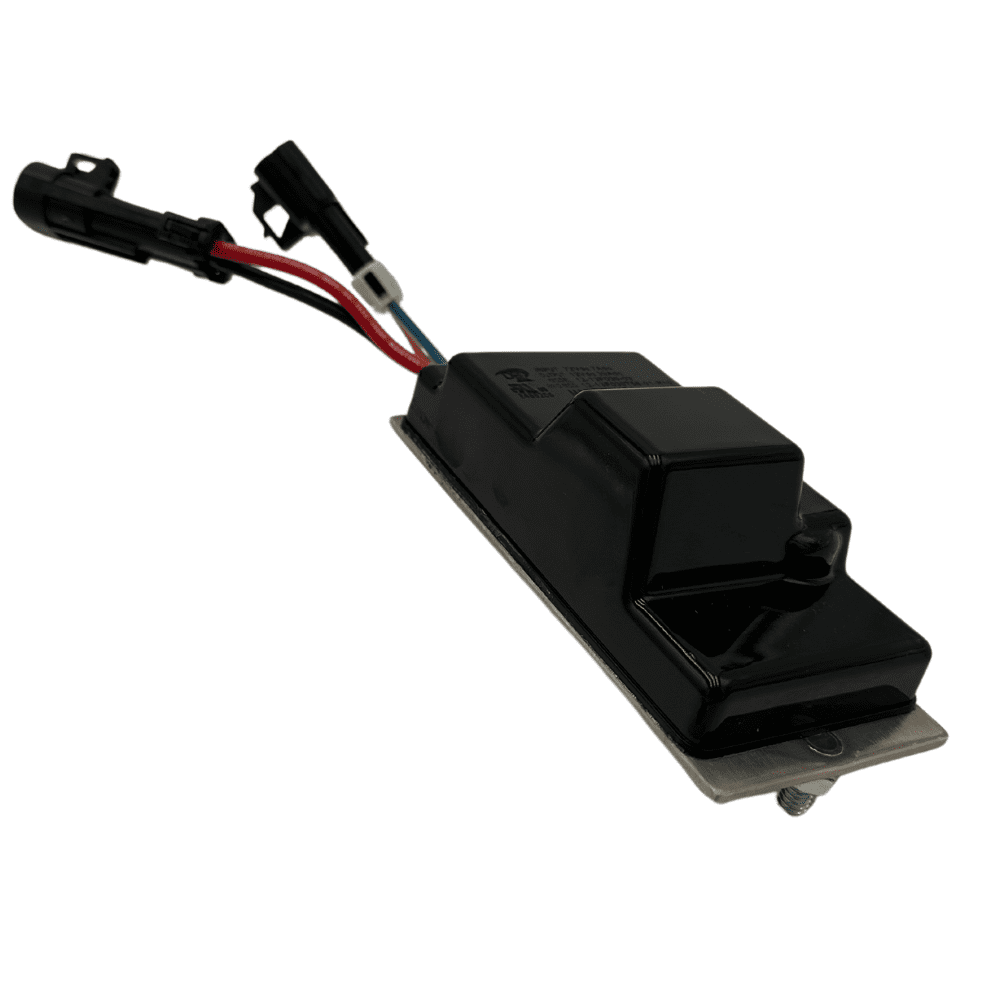

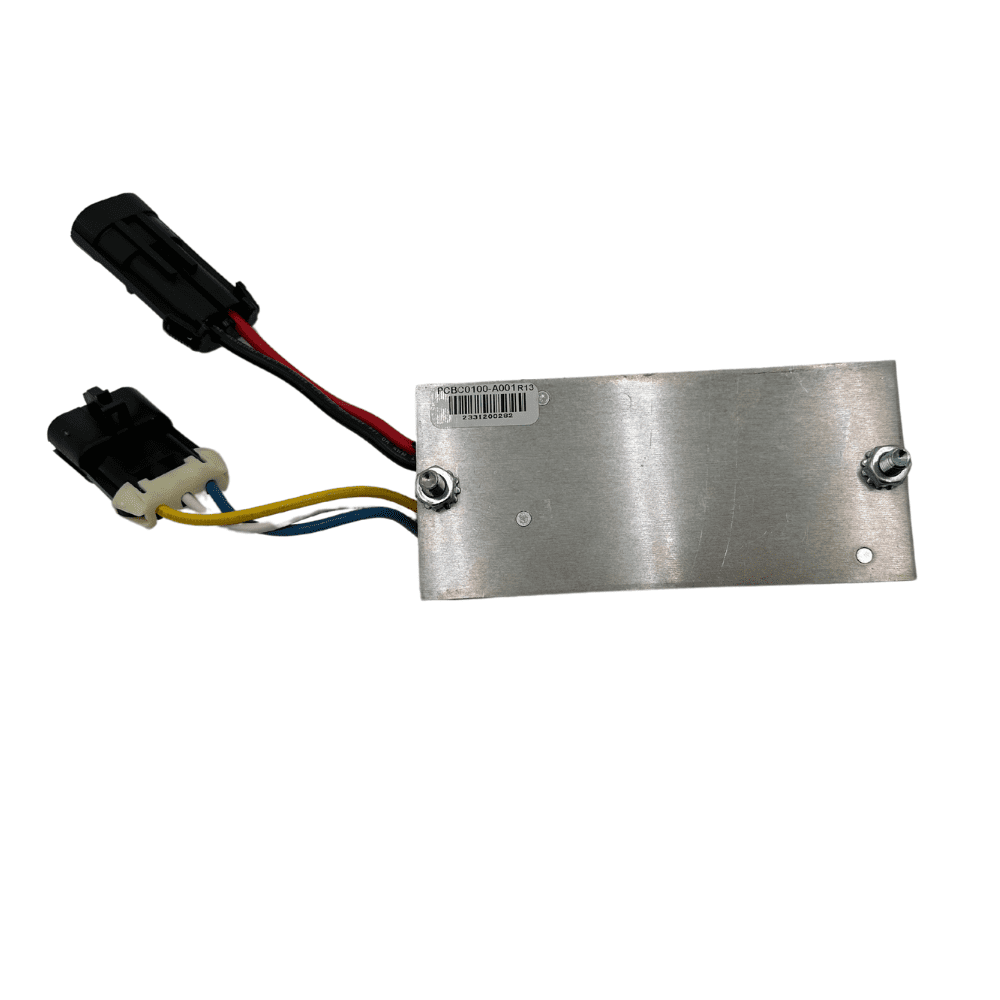

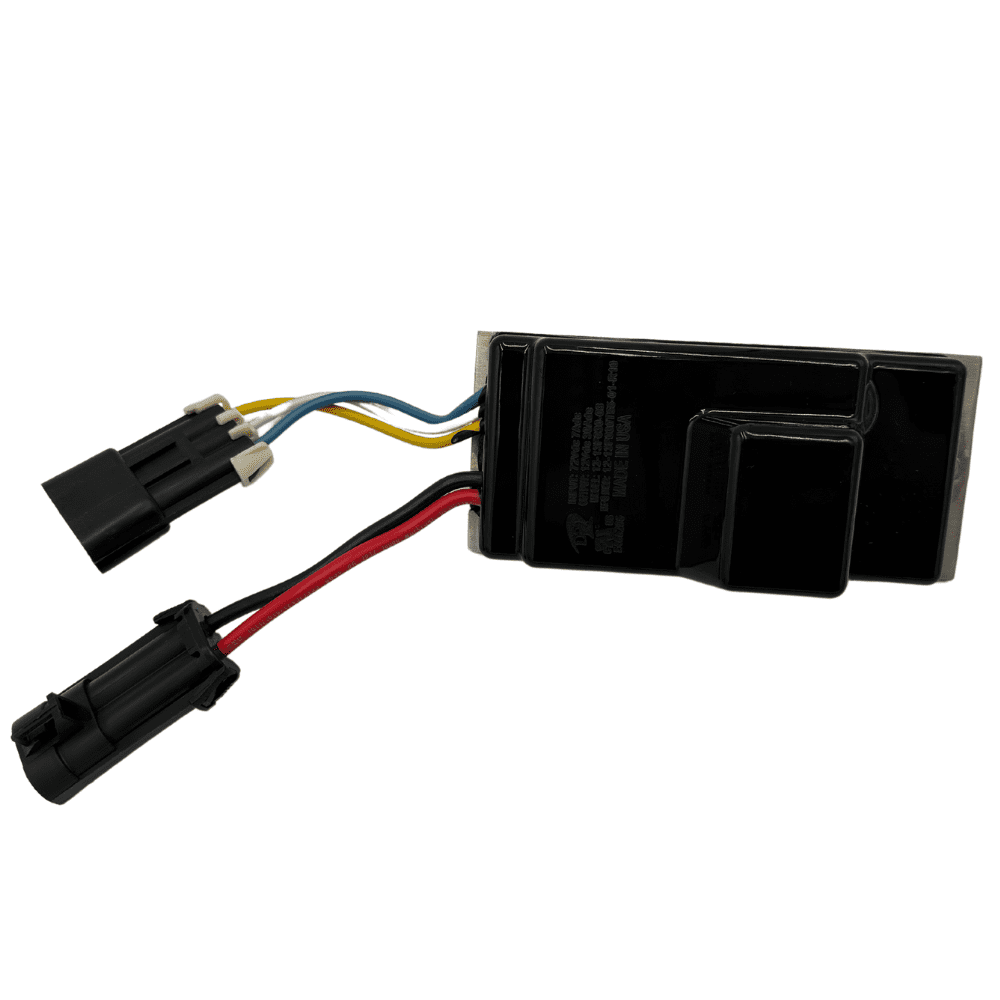

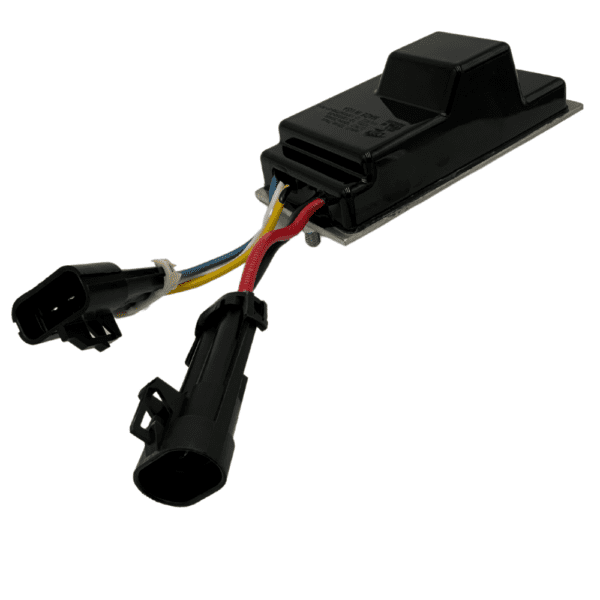

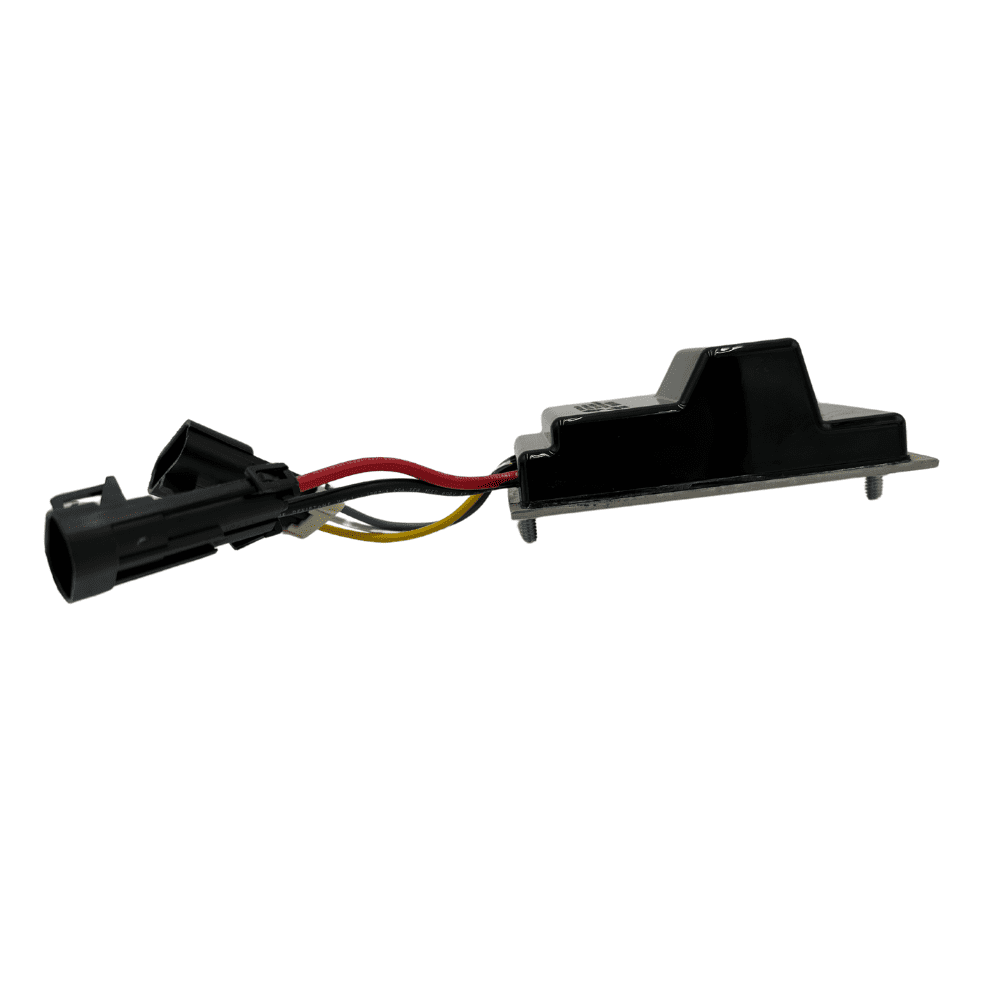

60/72V Input, 12.5V, 400-Watt 30 Amp
Output Converter

NOMINAL RATING:
I/P VOLTAGE: 60-72 Vdc Battery Pack Voltage
I/P CURRENT: 7.0 Adc
I/P PROTECTION: REVERSE BATTERY CONNECTION
ACTIVE CURRENT AND POWER LIMIT

INPUT RATING:
UVL= 50Vdc – ON, 43Vdc – OFF.
OVL= 105 Vdc – OFF, 96 Vdc – ON.
I/P VOLTAGE OPERATIONAL – 50Vdc TO 105Vdc.
I/P CURRENT: 7.0 Adc @ 50Vdc

OUTPUT:
O/P VOLTAGE: 12.5 ±0.5 Vdc
EFFICIENCY: > 93%
O/P PROTECTION: SHORT CIRCUIT / OVER CURRENT: 40 Adc

CONTROL:
IGNITION KEY TURN ON: B+ (BATTERY POSITIVE)

THERMAL PROTECTION:
THERMAL SWITCH: 105° C, INTERNAL THERMISTOR, SELF RECOVERY

ENVIRONMENTAL:
OPERATING TEMPERATURE: -40°C TO +50°C, UNRESTRICTED AIRFLOW
STORAGE TEMPERATURE: -40°C TO +105°C AMBIENT

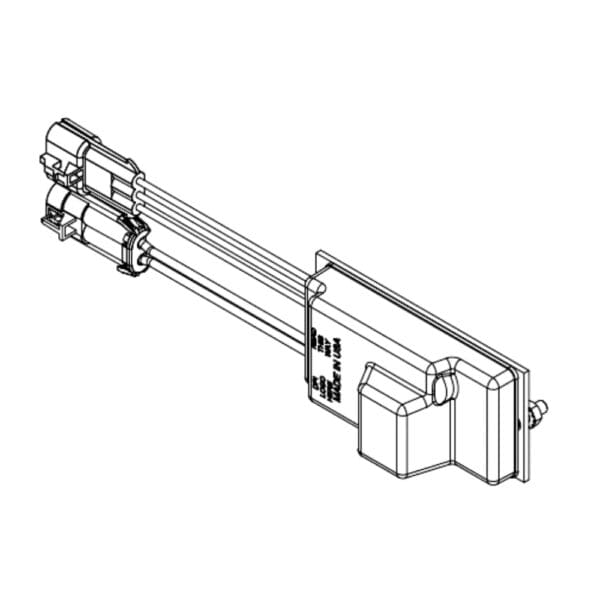

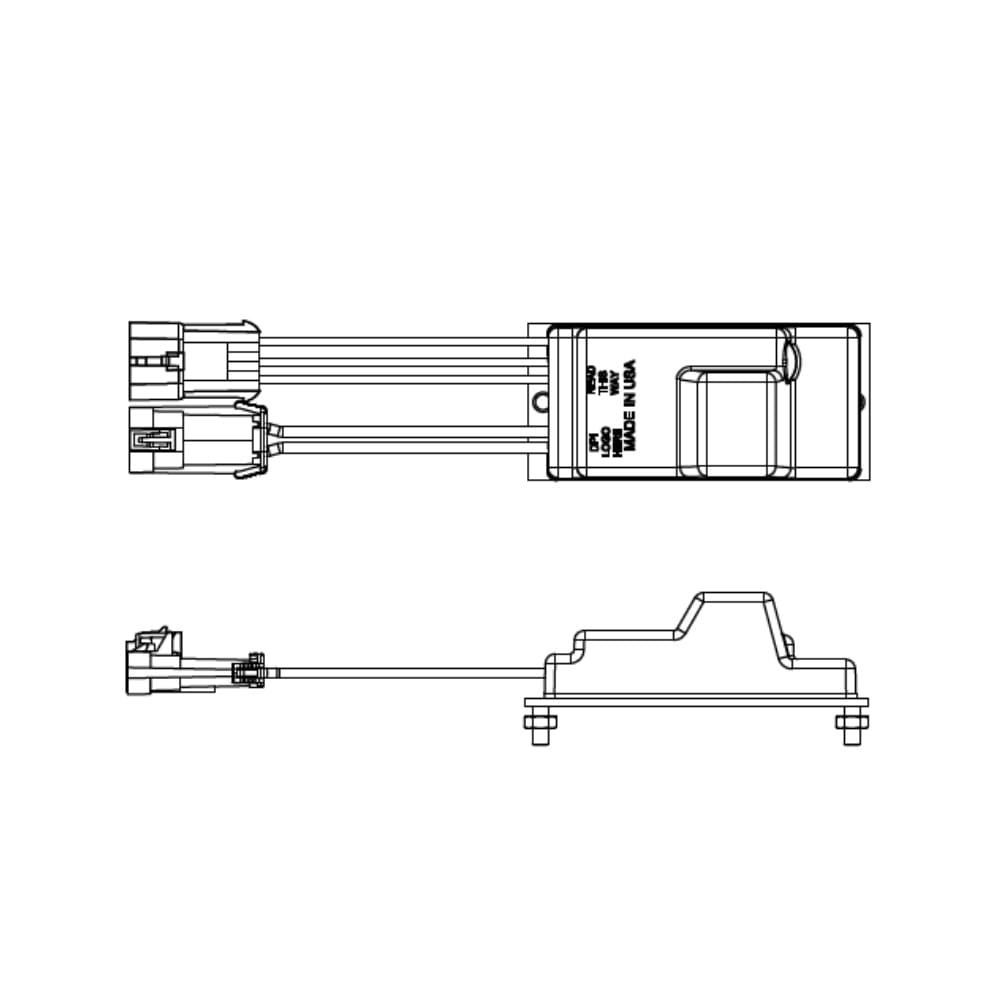

MECHANICAL:
WEIGHT: (LBS/KG): 2.0 LBS ±2 OZ, (.91 KG APPROX.)
VIBRATION: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM
SHOCK: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM

SAFETY: MEETS UL-1012 (POWER UNITS OTHER THAN CLASS-1 FULLY ISOLATED OUTPUTS FROM INPUTS & CHASSIS
