Voltage regulation is crucial for forklift electrical systems when it comes to reliability and longevity. A steady power supply not only ensures smooth operation but significantly extends the battery life, reducing the downtime and maintenance costs associated with battery replacements or repairs.

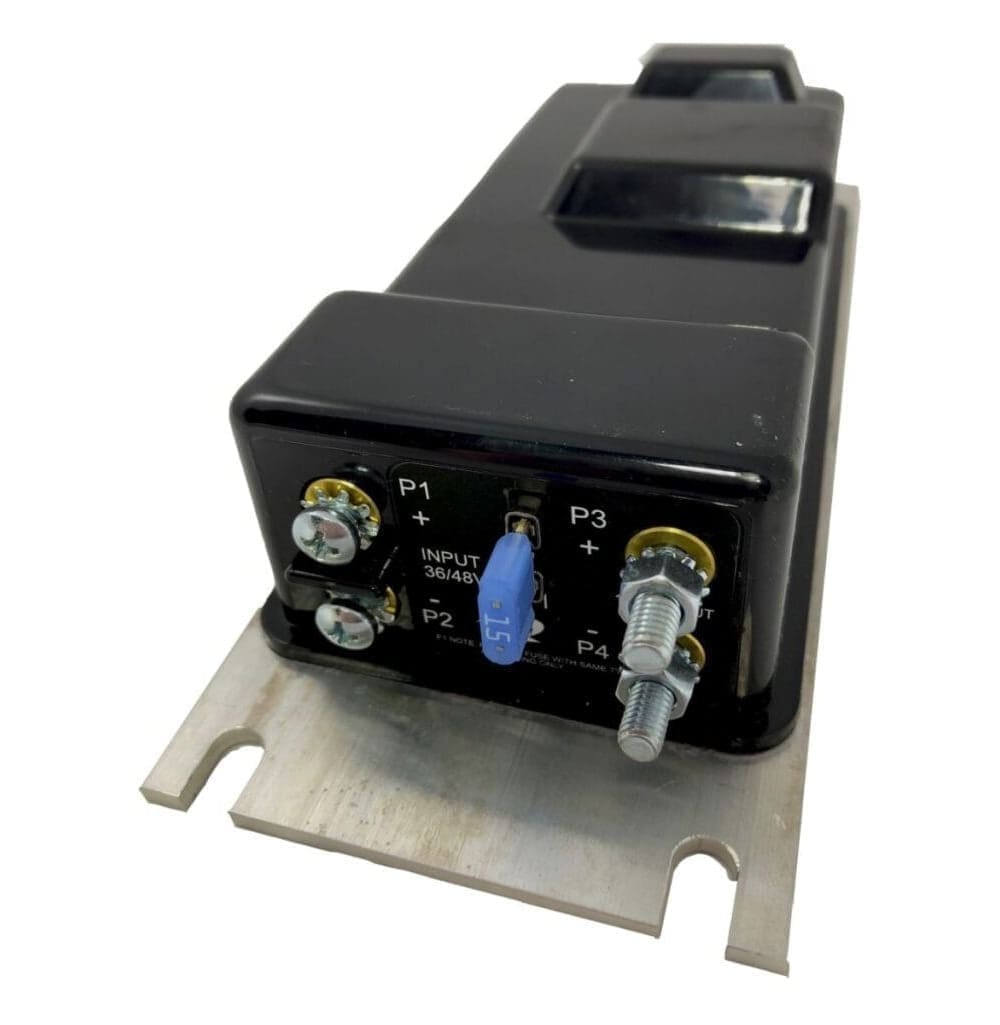

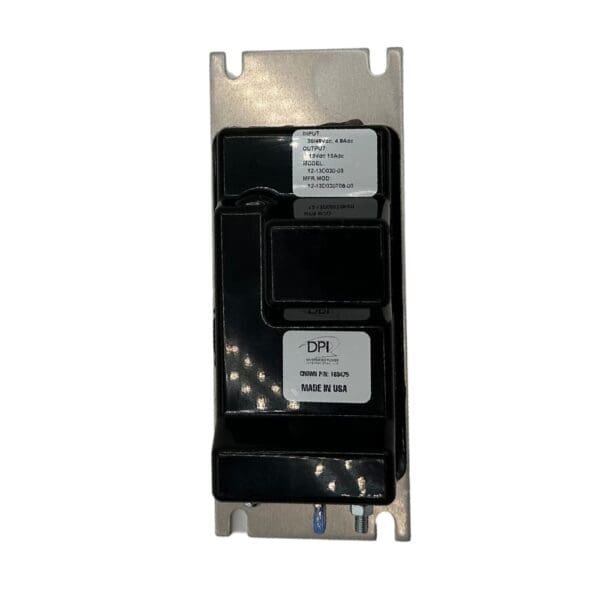

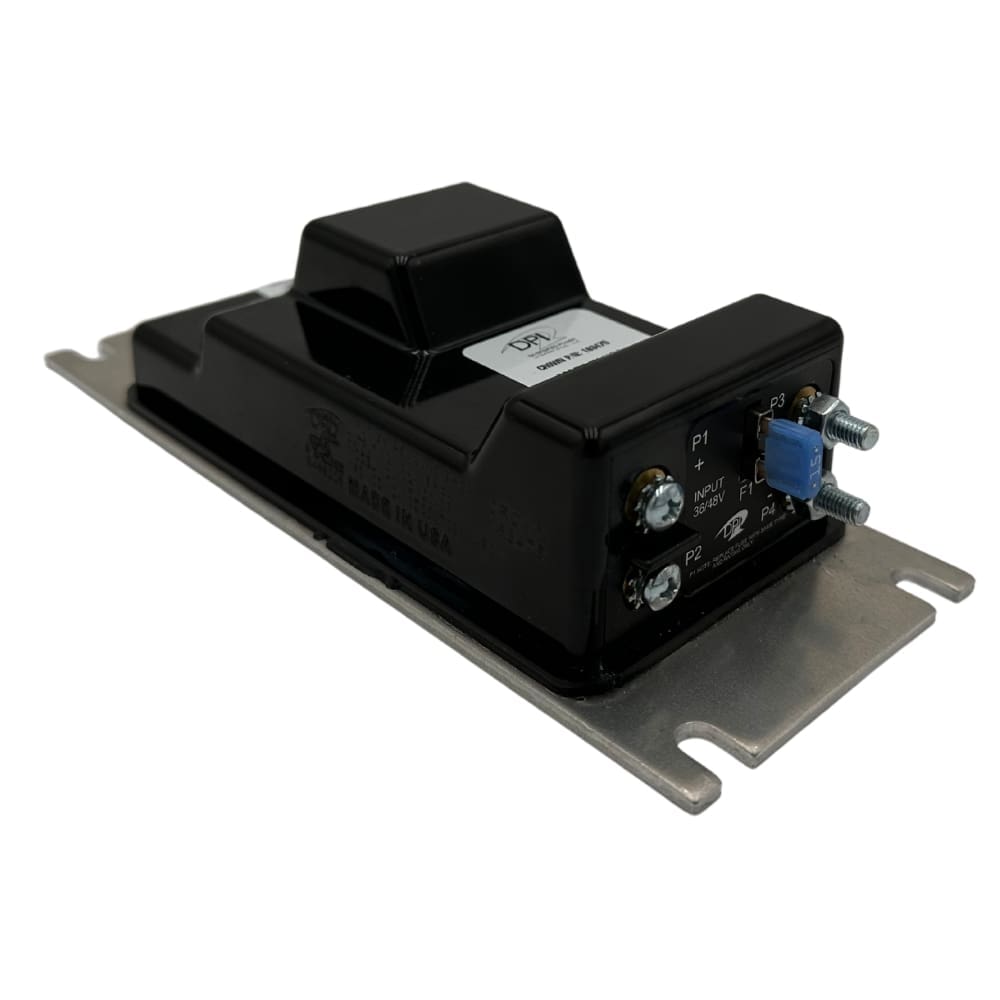

M4/M5 Terminal and External Fuse, Single Output. Full Isolation. Drop-in replacement for Sevcon Converter. UL / CSA Registered
INPUT:
I/P VOLTAGE: 22 – 82 Vdc
I/P CURRENT: 40 Adc @ 52 Vin
I/P PROTECTION: REVERSE BATTERY CONNECTION
SHORT CIRCUIT PROTECTION
OUTPUT:
O/P VOLTAGE: 13.00.5 Vdc
EFFICIENCY: >92% @ 15A
O/P PROTECTION: SHORT CIRCUIT / OVER CURRENT: 40A OUT
THERMAL PROTECTION:
THERMAL SWITCH: 110° C, INTERNAL THERMISTOR, SELF RECOVERY
ENVIRONMENTAL:
OPERATING TEMPERATURE: -40°C TO +50ƒC, UNRESTRICTED AIRFLOW
STORAGE TEMPERATURE: -40°C TO +105ƒC AMBIENT

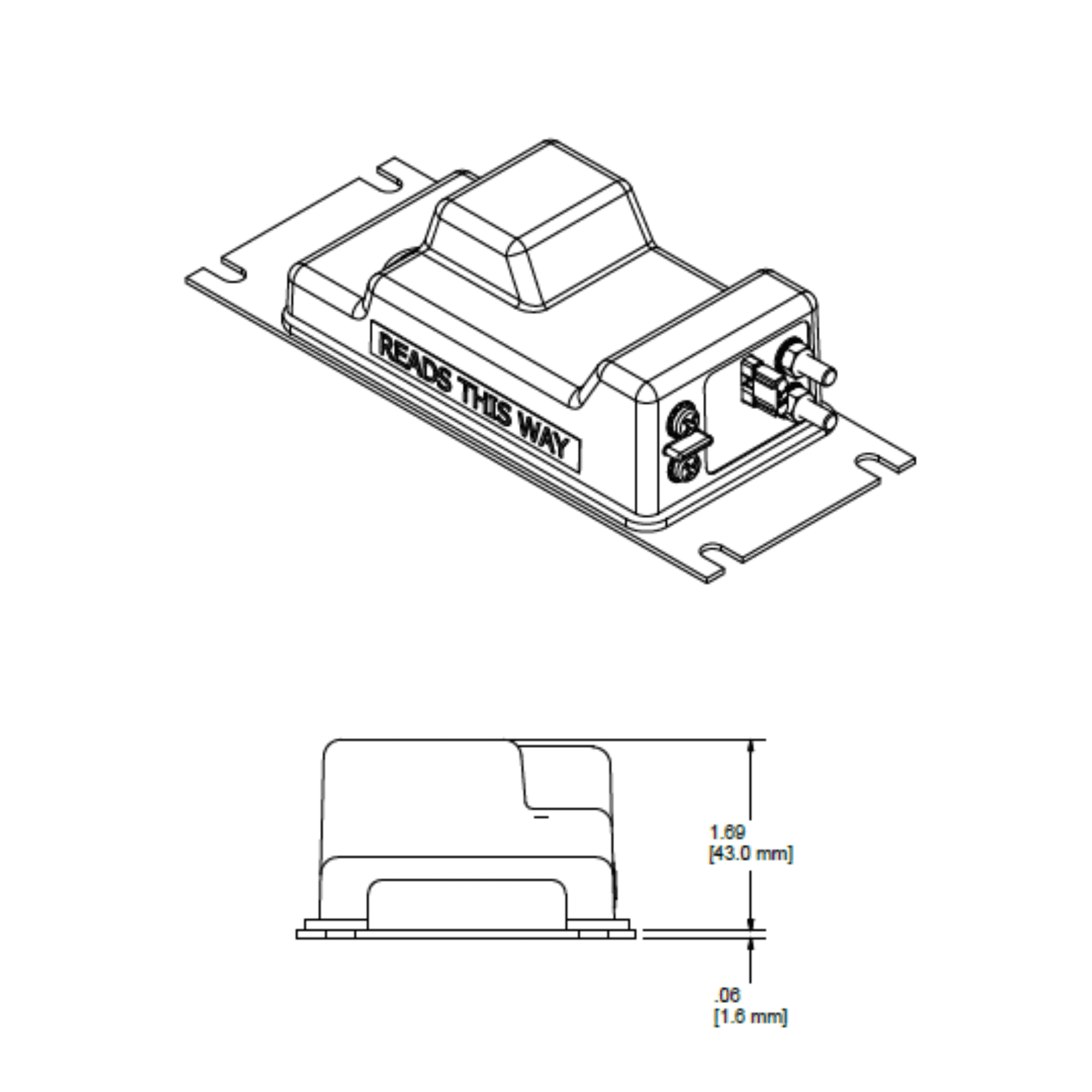

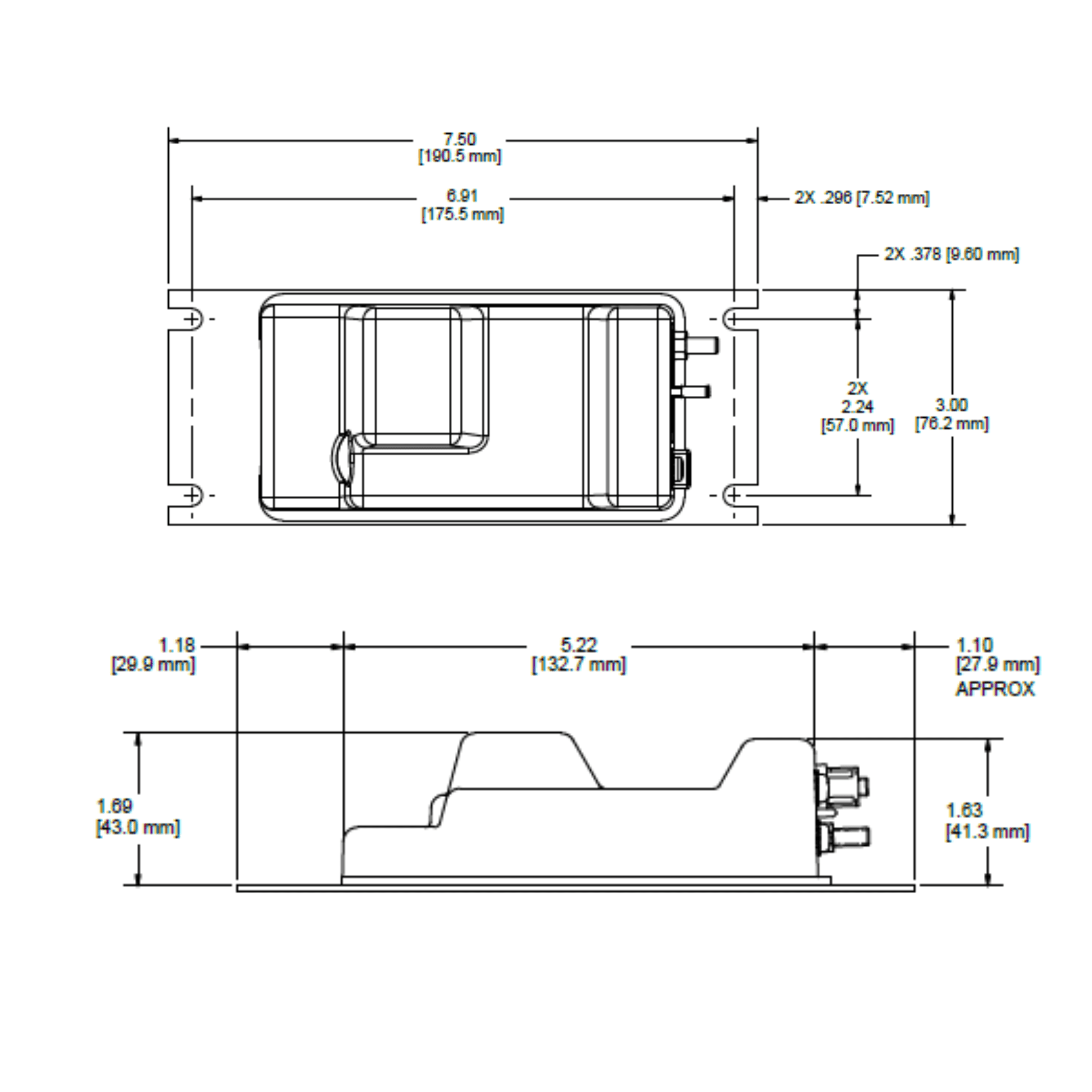

MECHANICAL:
WEIGHT: (LBS/KG): 1.31 LBS 2 OZ, (.59 KG APPROX.)
VIBRATION: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM
SHOCK: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM
SAFETY: MEETS UL-1012 (POWER UNITS OTHER THAN CLASS-1.
MEETS UL 583 (ELECTRIC-BATTERY-POWERED INDUSTRIAL TRUCKS).
FULLY ISOLATED OUTPUTS FROM INPUTS & CHASSIS
