24V Input, 13.5V, 450-Watt, 33 Amp
DC Output Converter

INPUT:
I/P VOLTAGE: 19 – 32 Vdc
I/P CURRENT: 20Adc MAX

OUTPUT:
O/P VOLTAGE: 13.6 `5% Vdc
EFFICIENCY: >95% @ 20A
O/P AMPS: 30Adc MIN, 32 Adc TYPICAL.

CONTROL:
IGNITION KEY TURN ON: B+ (BATTERY POSITIVE)

THERMAL PROTECTION:
THERMAL SWITCH: 105° C, INTERNAL THERMISTOR,
SELF RECOVERY

ENVIRONMENTAL:
OPERATING TEMPERATURE: -40°C TO +60°C, UNRESTRICTED
AIRFLOW STORAGE TEMPERATURE: -40°C TO +105°C AMBIENT

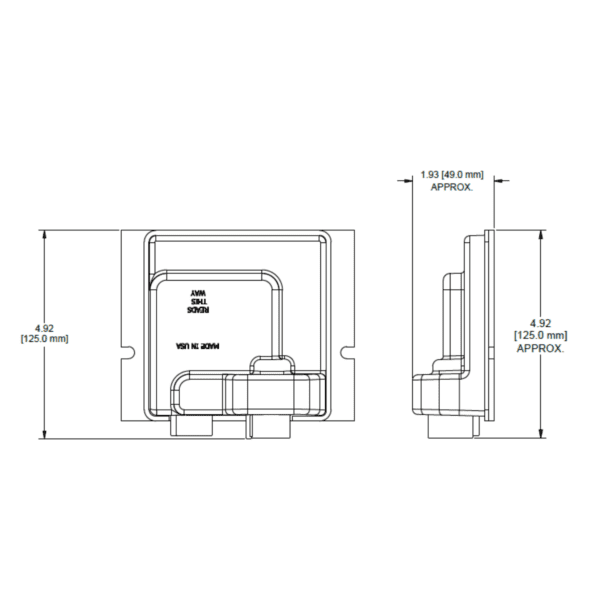

MECHANICAL:
WEIGHT: (LBS/KG): 1.362 LB = .618 KG
VIBRATION: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM
SHOCK: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM

SAFETY: NONE
FULLY ISOLATED OUTPUTS/INPUTS FROM CHASSIS
UL MARKING: NONE
