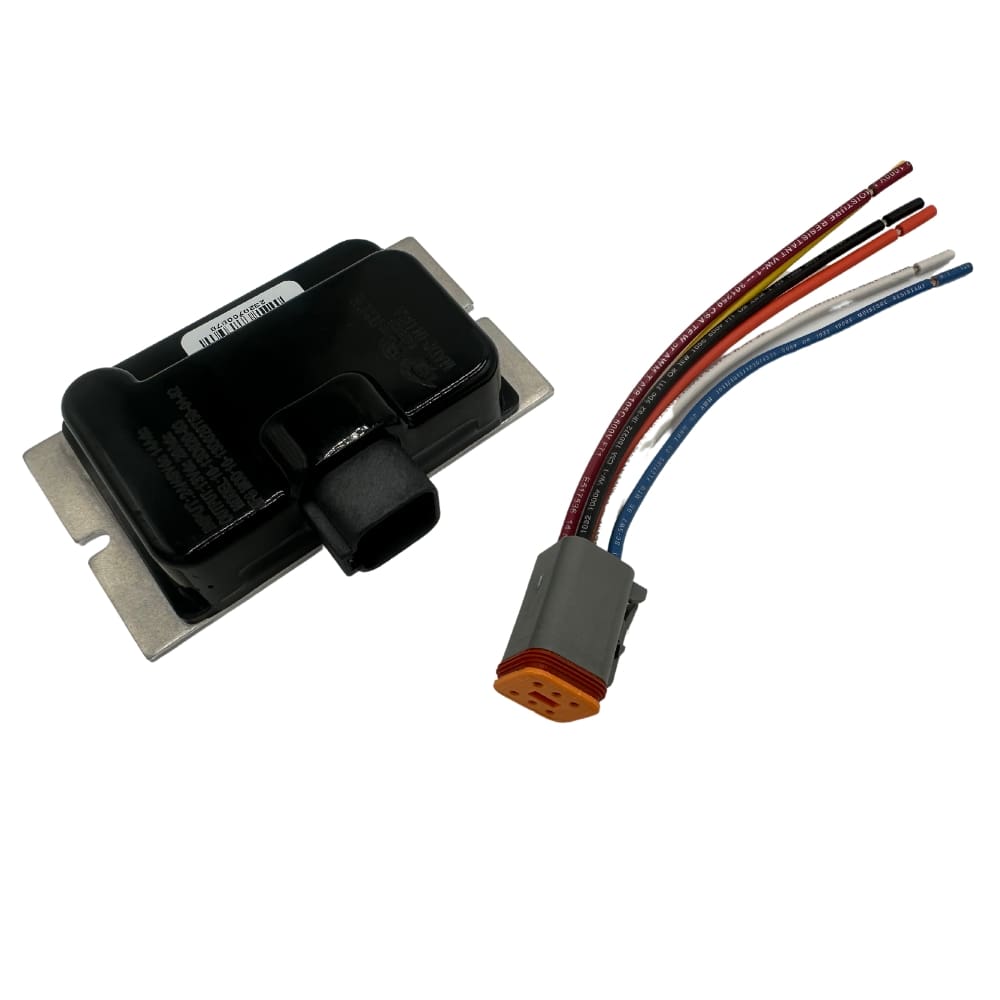

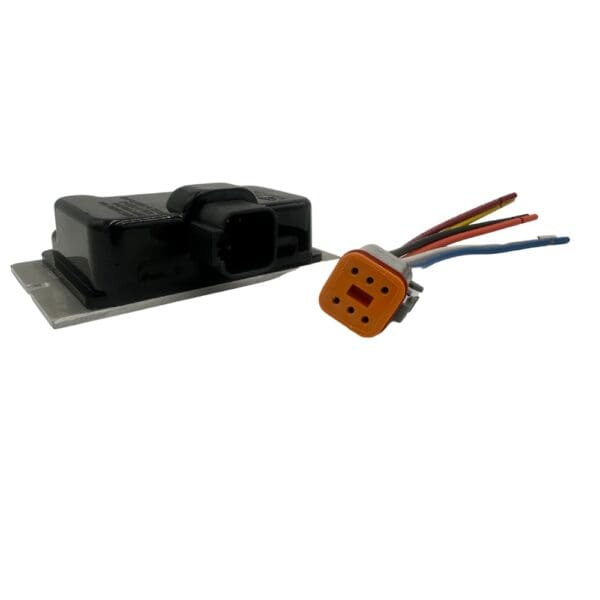

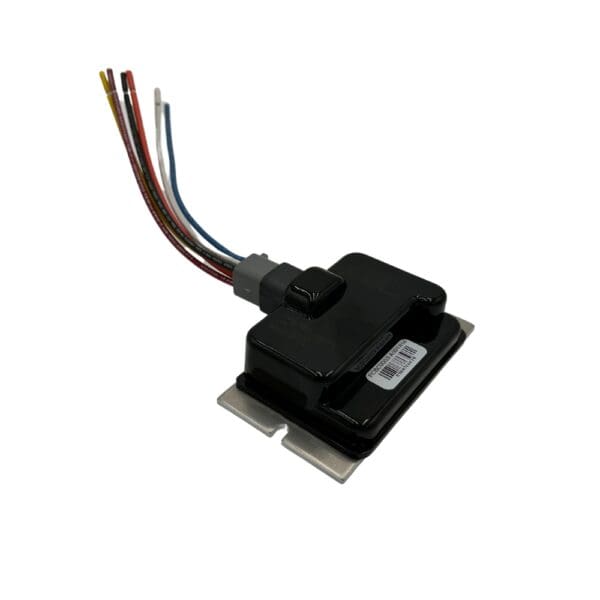

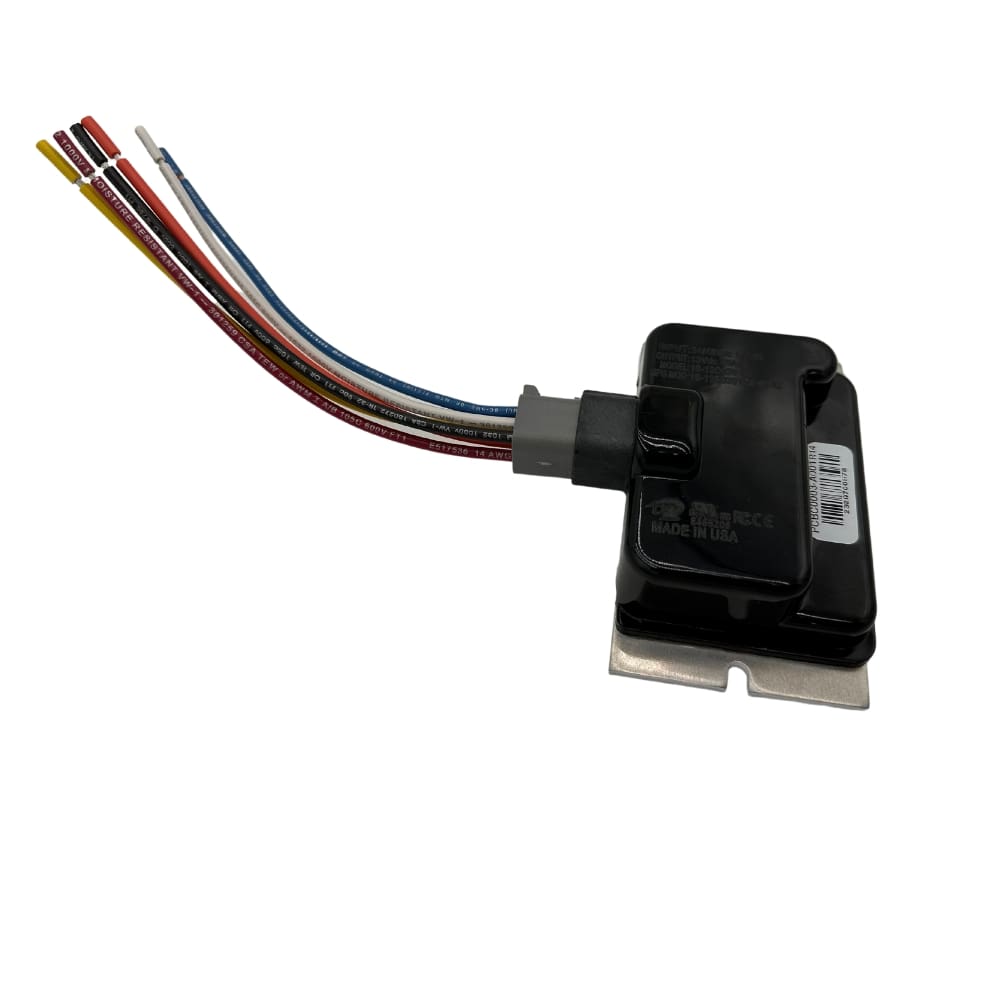

24/48v DC to DC
Dual Output Converter

INPUT:
INPUT Vdc MIN: 19 – 20 Vdc
INPUT Vdc MAX: 72 – 76 Vdc
I/P CURRENT: 15.0 Adc – 4.0 Adc

OUTPUT:
O/P VOLTAGE: 13.5 Vdc 5%
EFFICIENCY: >95%.
17Adc Cont @ 25°C.
20Adc Cont @ 25°C WITH 40sq in HEATSINK.
O/P PROTECTION: SHORT CIRCUIT / OVER CURRENT: 23 – 27 A

CONTROL:
IGNITION KEY TURN ON: B+ (BATTERY POSITIVE)

THERMAL PROTECTION:
THERMAL SWITCH: 115° C, INTERNAL THERMISTOR, SELF
RECOVERY

ENVIRONMENTAL:
OPERATING TEMPERATURE: -30°C TO +50ƒC, UNRESTRICTED
AIRFLOW
STORAGE TEMPERATURE: -40°C TO +125ƒC AMBIENT

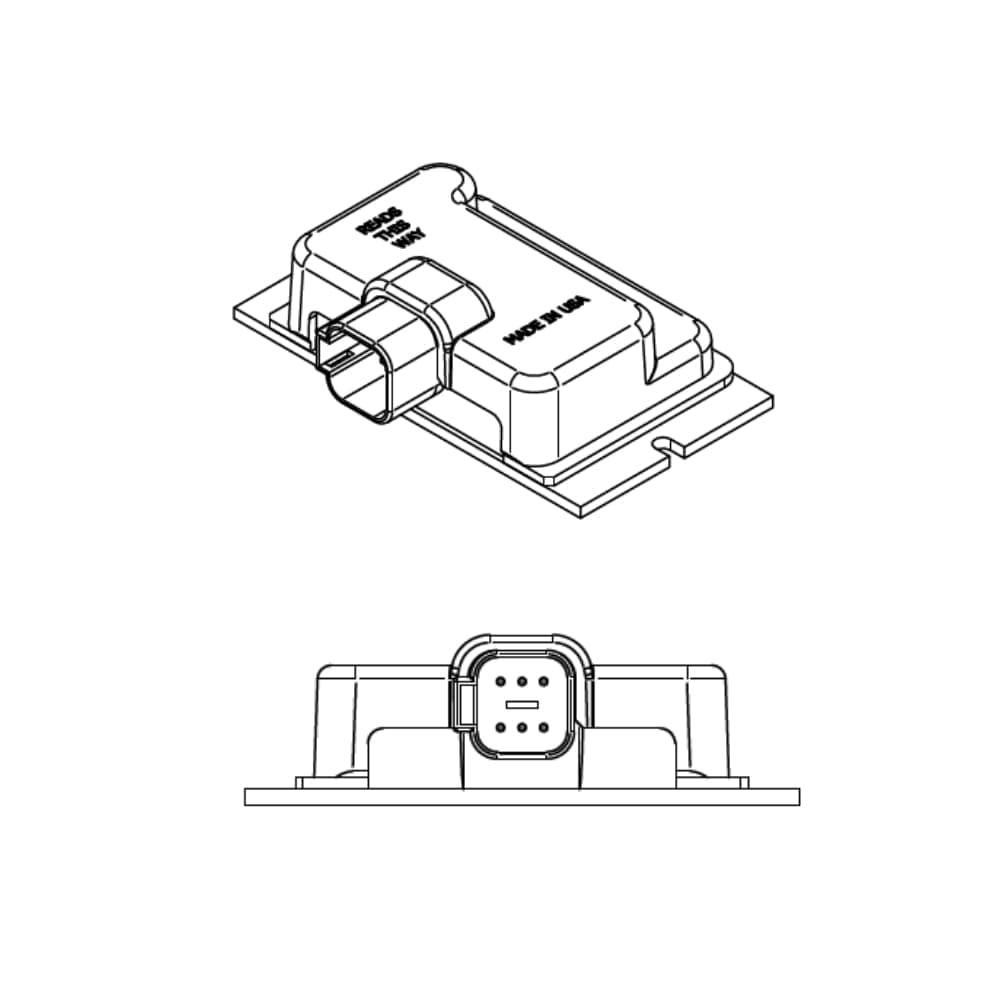

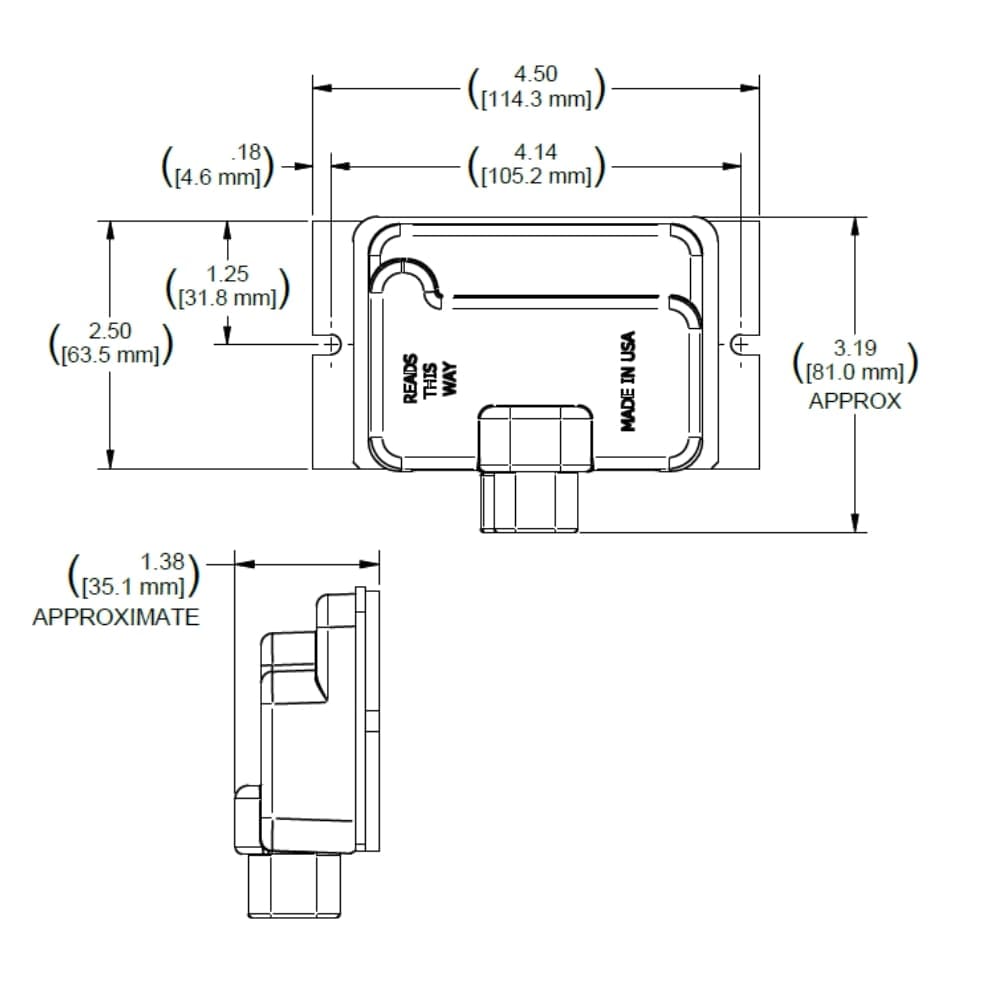

MECHANICAL:
WEIGHT: (LBS/KG): 0.64 LBS 2 OZ, 0.29 KG.
VIBRATION: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM
SHOCK: MEETS SAE 1211, ASTM-D-4728 TRUCK SPECTRUM

SAFETY: MEETS cUL-1012 (POWER UNITS OTHER THAN CLASS-1.
FULLY ISOLATED OUTPUTS/INPUTS FROM CHASSIS
AGENT MARKING: E466206, CE, FCC
