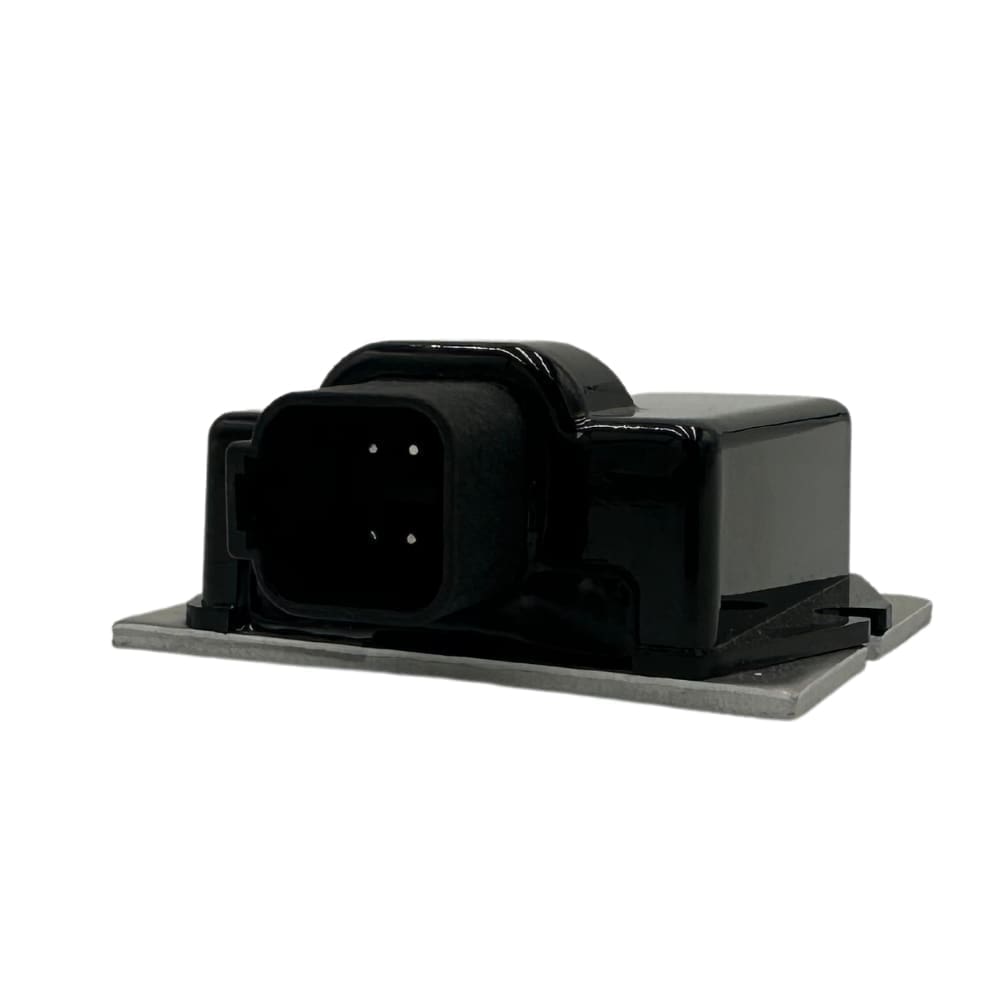

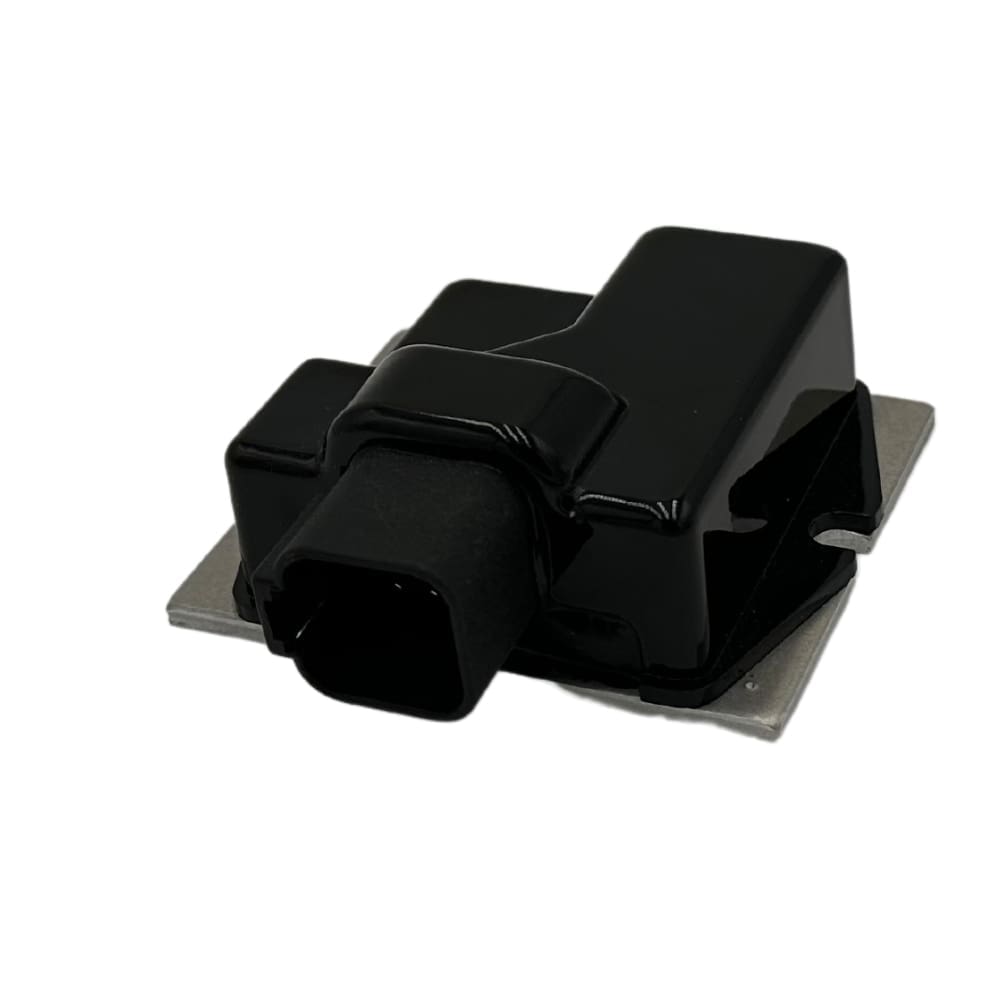

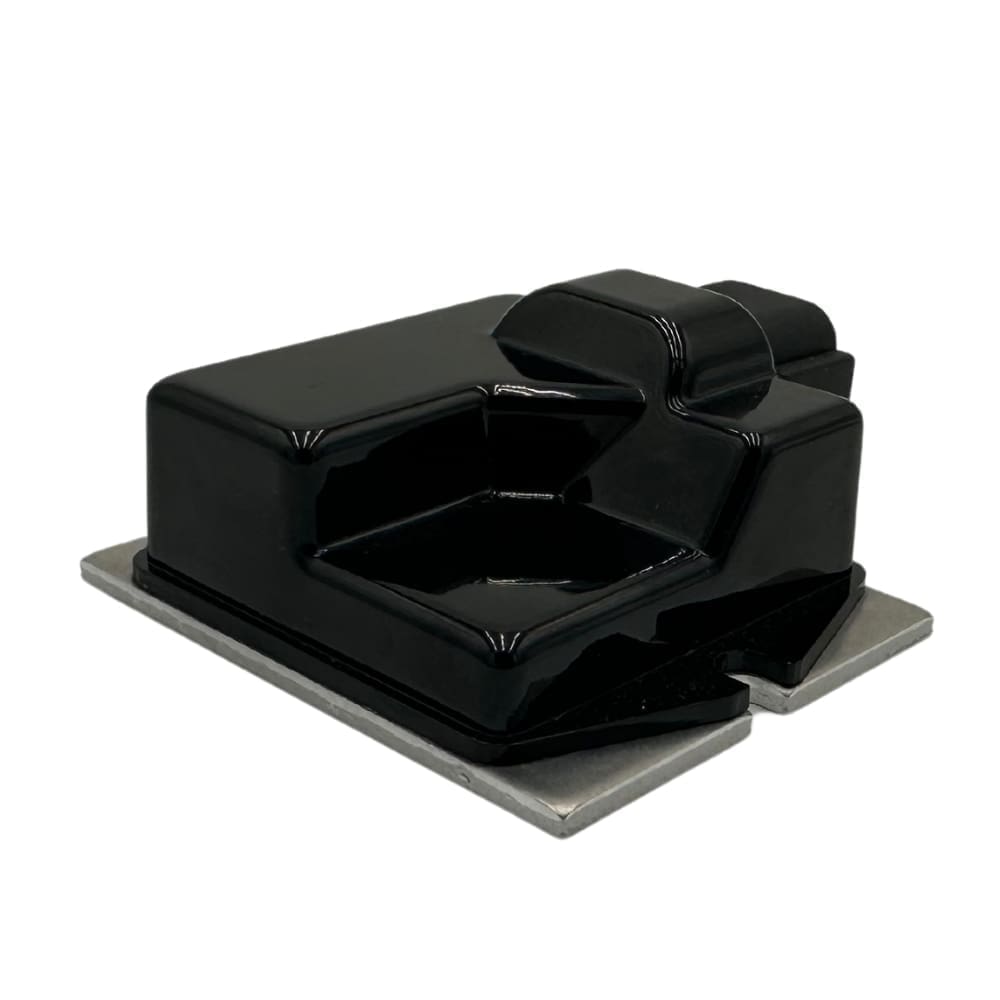

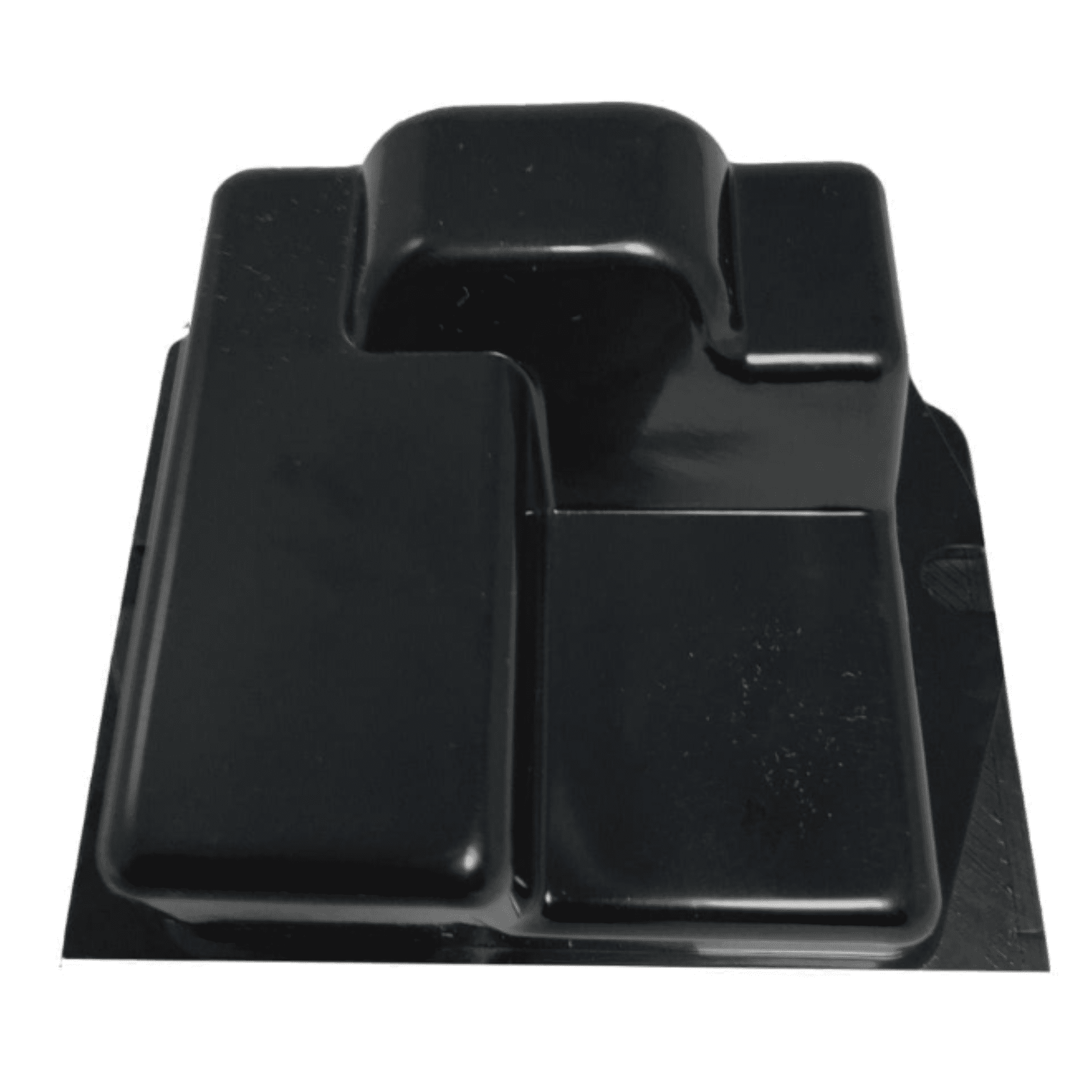

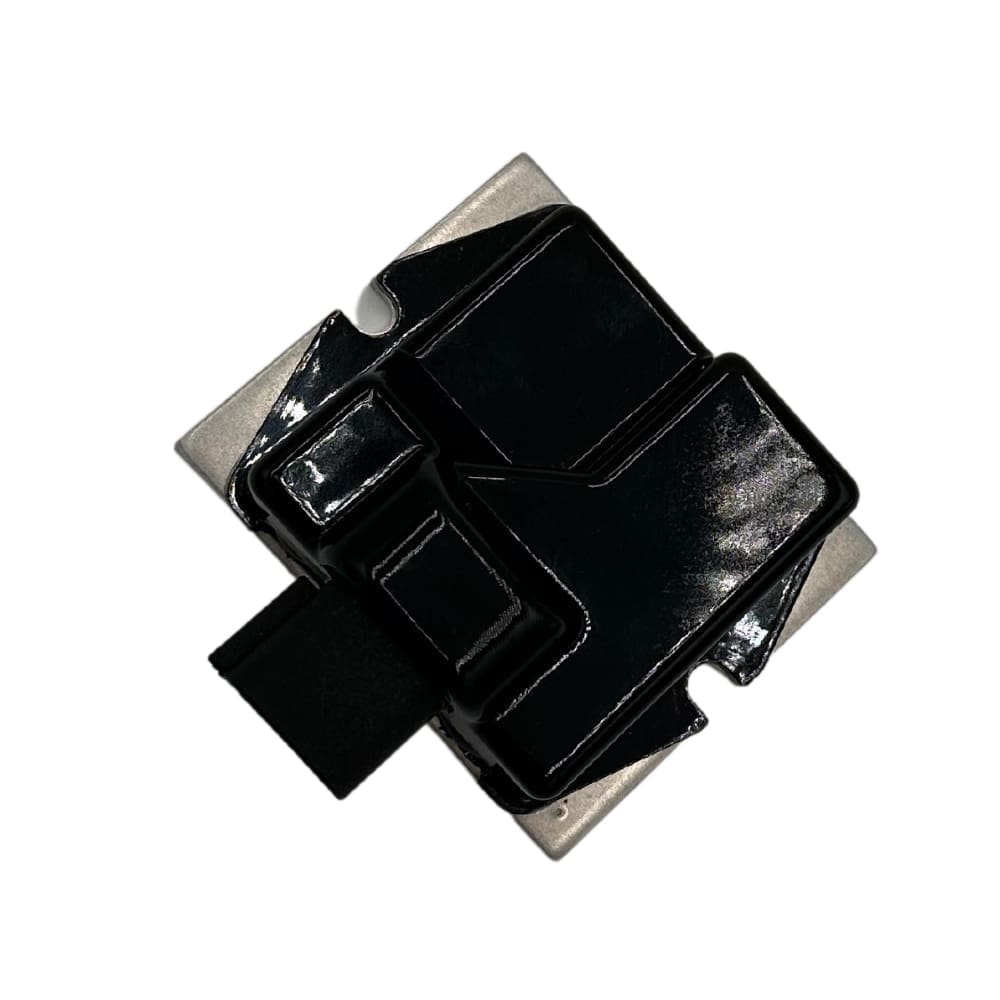

24/48V Input, 13.5V, 120-Watt
10 Amp Output Converter

INPUT:
I/P VOLTAGE: 19 – 72 Vdc (ABSOLUTE MAX 75V)
I/P CURRENT: 5.1Adc @ 24Vdc INPUT VOLTAGE.

OUTPUT:
O/P VOLTAGE: 12 `5% Vdc
EFFICIENCY: 96.4% @ 10A @ 24V INPUT
O/P AMPS: 10 Adc (CURRENT LIMIT @ 10.8A MIN)

THERMAL PROTECTION:
THERMAL SWITCH: 115° C, INTERNAL THERMISTOR,
SELF RECOVERY

ENVIRONMENTAL:
OPERATING TEMPERATURE: -40°C TO +60°C,
UNRESTRICTED AIRFLOW STORAGE TEMPERATURE:
-40°C TO +125°C AMBIENT

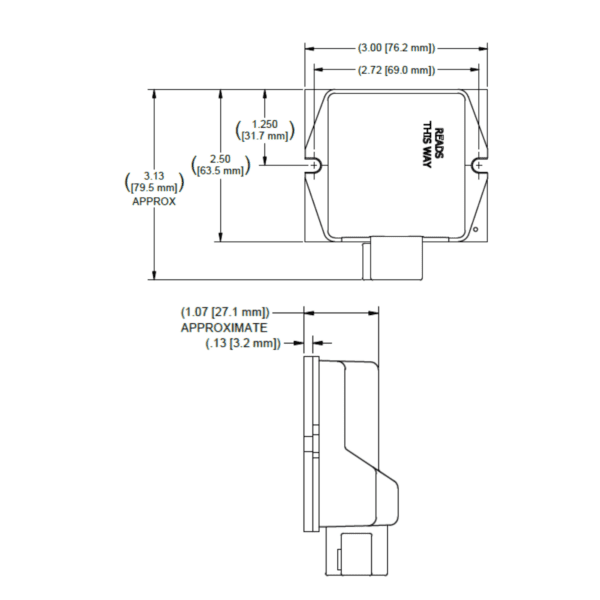

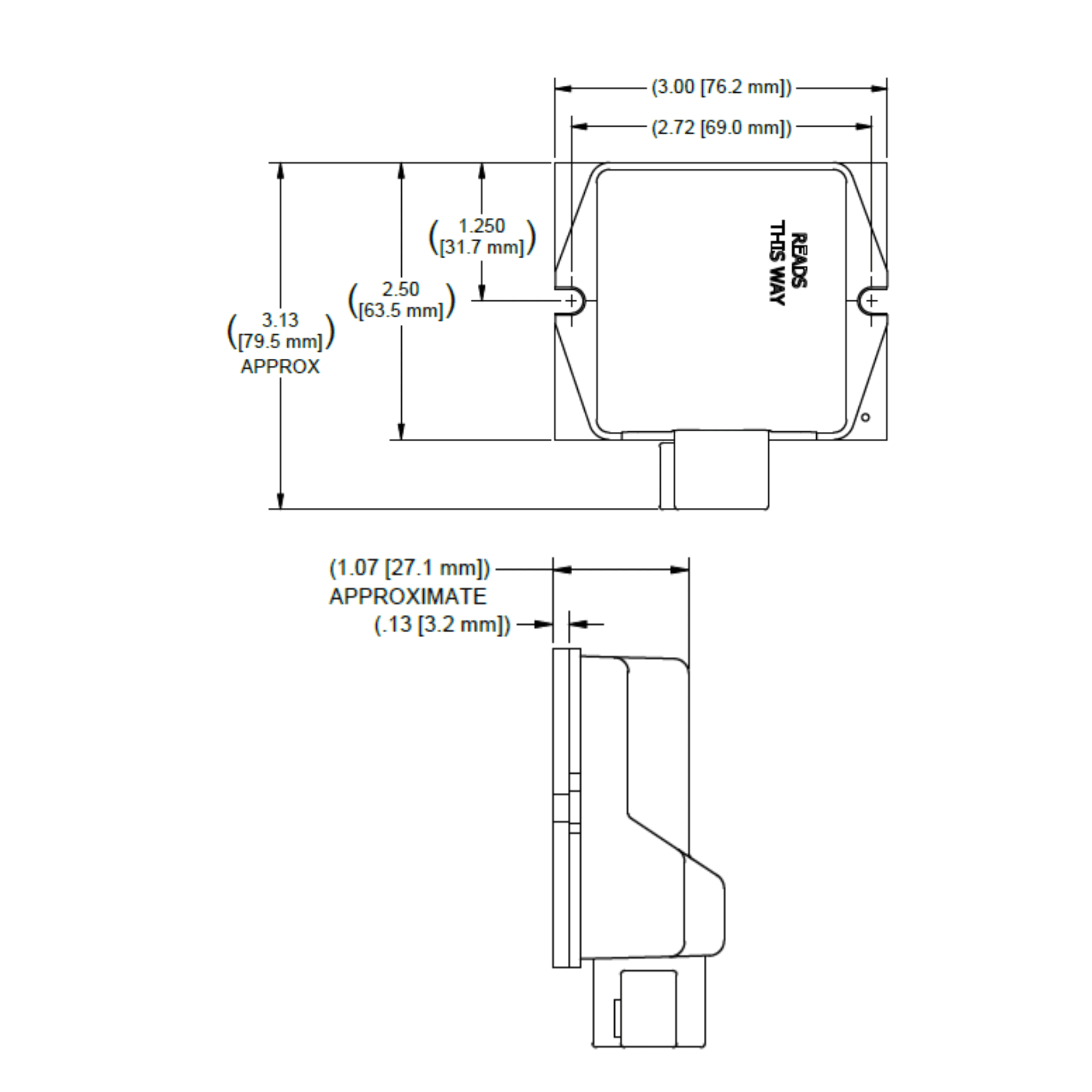

MECHANICAL:
WEIGHT: (LBS/KG): 0.40 lbs (0.18 Kg APPROX.)
VIBRATION: MEETS SAE 1211, ASTM-D-4728 TRUCK
SPECTRUM SHOCK: MEETS SAE 1211, ASTM-D-4728
TRUCK SPECTRUM

SAFETY: UL/CSA
FULLY ISOLATED OUTPUTS/INPUTS FROM CHASSIS
