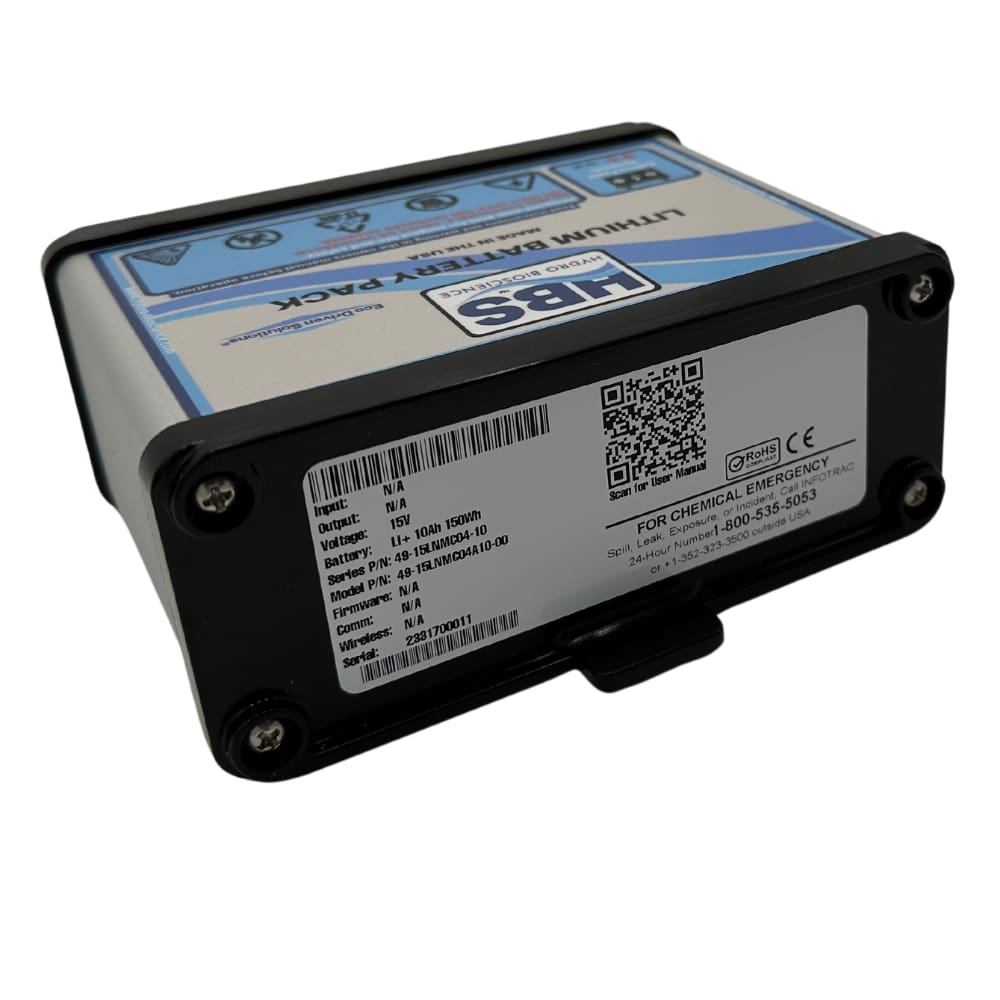

15V 10AH Lithium Battery Pack

WEIGHT:
BATTERY PACK (10AH): 2.15 POUNDS (0.98 KILOGRAMS)

MATERIALS:
ALUMINUM
POLYCARBONATE
POLYPROPYLENE LABELS
NEOPRENE GASKETS
STAINLESS STEEL HARDWARE

ENVIRONMENTAL:
OPERATING (CHARGE) TEMPERATUE: 32°F (0°C) – 113°F (45°C)
OPERATING (DISCHARGE) TEMPERATUE: -4°F (-20°C) – 140°F (60°C)
STORAGE TEMPERATURE: 14°F (-10°C) – 95°F (35°C)

ELECTRICAL:
NOMINAL CAPACITY: – 10AH(150Wh)
NOMINAL VOLTAGE: 15V
DISCHARGE VOLTAGE: 11.6V ± 0.2V
CHARGE VOLTAGE: 16.8V ± 0.2V
INTERNAL RESISTANCE 7AH (EST): ≤13mΩ
INTERNAL RESISTANCE 10AH (EST): ≤10mΩ
MAX CONTINUOUS DISCHARGE 7AH: 3.5 AMPS
MAX CONTINUOUS DISCHARGE 10AH: 5.0 AMPS
BATTERY POS(+): .250(6.35mm) GOLD-PLATED TAB TERMINALS(2)
BATTERY NEG(-): .250(6.35mm) GOLD-PLATED TAB TERMINALS(2)
OUTPUT PROTECTION: SHORT CIRCUIT/OVER CURRENT (INTERNAL RESETTABLE FUSE)
INTERNAL CELL BALANCING
OVER TEMP SHUT DOWN, AUTO RESET

MOUNTING:
MOUNTING SCREWS: #8-32 OR EQUIVALENT, 18-8 STAINLESS STEEL
